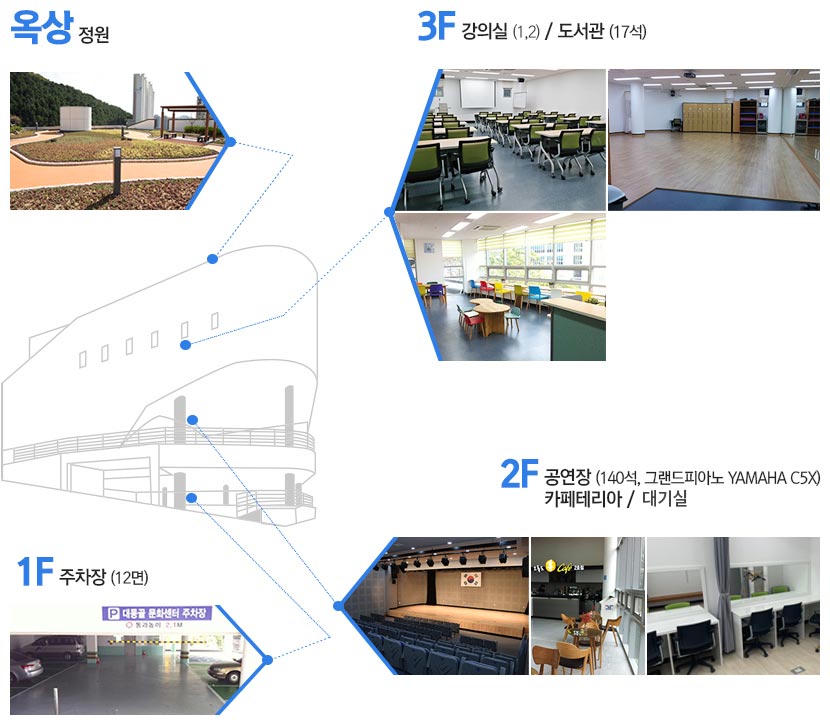

시설안내
HOME > 대동골 > 문화센터소개 > 시설안내
시설안내
공연장현황
공연장 평면도 다운로드
무대 시설
| ITEM | CONTENT (meter) | QUANT. | NOTE | |
|---|---|---|---|---|
| STAGE | 면적(area) | 61.71m² | 가용 59 | |
| 앞쪽가로(downstage width) | 11.5 | 가용 10 | ||
| 안쪽가로(upstage width) | 10.7 | 가용 9 | ||
| 깊이(depth) | 5.1 | |||
| 바닥높이(floor height) | 0.6 | |||
| 무대높이(stage-height) | 3.9 | 가용 3.2 | ||
| PLACARD BATTEN BOARD | 9 x 0.7 | 1 | 보드 : 나무합판 | |
| CONTOUR CURTAIN | 11.4 x 4.8 | 1 | ||
| BORDER LIGHT BATTEN | 9 | 1 | ||
| NO.1 SUSPENSION LIGHT BATTEN | 9 | 1 | ||
| ROLL SCREEN | 6 x 4 | 1 | ||
| NO.2 SUSPENSION LIGHT BATTEN | 9 | 1 | ||
| FLAG BATTEN | 9 | 1 | ||
| HORIZONT CURTAIN | 10.4 x 4.5 | 1 | ||
| CEILING LIGHT BATTEN | 9 | 1 | 고정형 | |
| GRAND PIANO | YAMAHA C5X | 1 | ||
조명 시설
| ITEM | MODEL | QUANT. | NOTE |
|---|---|---|---|
| FRESNEL LIGHT | 650W | 16 | |
| PLANO CONVEX LIGHT | 650W | 12 | |
| BORDER LIGHT | 300W | 12 | |
| SOURCE FOUR | 750W | 1 | ETC |
| STROBE | 1500W | 1 | |
| BLINDER (4 BANK) | 28V/250W | 2 | 2개를 1조로 직렬연결 사용 |
| LEE FILTER | 1 | L126,L116,L132,L105 | |
| FOG | 1 | ||
| SUSPENSION BATTEN | 9M | 2 | 2 circuit (each)/ motor |
| BORDER BATTEN | 9M | 1 | 4 circuit/ motor |
| CEILING BATTEN | 9M | 1 | 4 circuit/ fixed |
| DIMMER | DG-512D | 1 | DIGITEC/ 12ch |
| CONSOLE | SMARTFADE 1248 | 1 | ETC |
음향 시설
| ITEM | MODEL | QUANT. | NOTE | |
|---|---|---|---|---|
| CONSOLE | GB8 | 1 | input32/aux8 | |
| SPEAKER | SUB | VRX915S | 2 | 15"x1 |
| MAIN | VRX928LA | 4 | 1"(x2) 8" / 100°x15° | |
| WALL | AC16 | 4 | 1" 6.5" / 90°x90° | |
| STAGE MONITOR | PRX412M | 2 | 12" / 90°x50° | |
| EON612 | 2 | 12"/100°x60°/powerd | ||
| C/R MONITOR | LSR305 | 2 | 5" two-way | |
| DRIVER | SUB, MAIN | DriveRack260 | 1 | 3in x 6out |
| AMP. | SUB | XTi 6002 | 1 | |
| MAIN | XTi 6002 | 2 | ||
| WALL | XTi 1002 | 2 | ||
| STAGE | XTi 2002 | 1 | ||
| MIC. | CONDENSER | C391B | 4 | cardioid |
| DYNAMIC | BETA 58A | 2 | ||
| DYNAMIC | BETA 57A | 3 | ||
| DYNAMIC | HD-40 | 10 | ||
| W/L HAND | DWH-701 | 6 | 925~937.5MHz | |
| W/L BELT | DWB-702 | 5 | 925~937.5MHz | |
| W/L RECEIVER | DWR-710 | 7(ch) | 925~937.5MHz | |
| W/L ANTENNA | DWA-512 | 2 | ||
| W/L ANT. DIST. | DWD-511 | 2 | ||
| D.I BOX | ACTIVE | AR133 | 4 | 1ch |
| ACTIVE | SDIRECT PLUS | 2 | 2ch | |
| EQUALIZER | DBX 1231 | 1 | dual, 31-band | |
| COMPRESSOR | DBX 1046 | 2 | ||
| CD PLAYER | CDN77 | 1 | dual | |
| CD RECORDER | SS-CDR200 | 1 | two-track | |
| SD PLAYER | SV-9600 | 1 | ||
| EFFECTOR | SPX-2000 | 1 | ||
| AUDIO INTERFACE | US-2x2 | 1 | ||
| HEADPHONE | MDR7506 | 1 | ||
| MIC. ST. | BOOM | 7 | ||
| DESK | 4 | |||
| I | 1 | |||
영상 시설
| ITEM | MODEL | QUANT. | NOTE |
|---|---|---|---|
| LCD PROJECTOR | EB-Z11000 | 1 | 11,000lm/ 1024x768 RGB, HDMI |
| VIDEO PLAYER | BP640 | 1 | CD, DVD, DivX BLU-RAY, 3D |
| SCREEN | 1 | 6m x 4m motor moving |
